Why Are Industries Moving Toward Anti-Static Storage Trays?

In a world where electronic components are increasingly sensitive to electrostatic discharge (ESD), Anti-Static Storage Trays are emerging as critical components for safeguarding devices during storage, transport, and assembly.

What Is an Anti-Static Storage Tray?

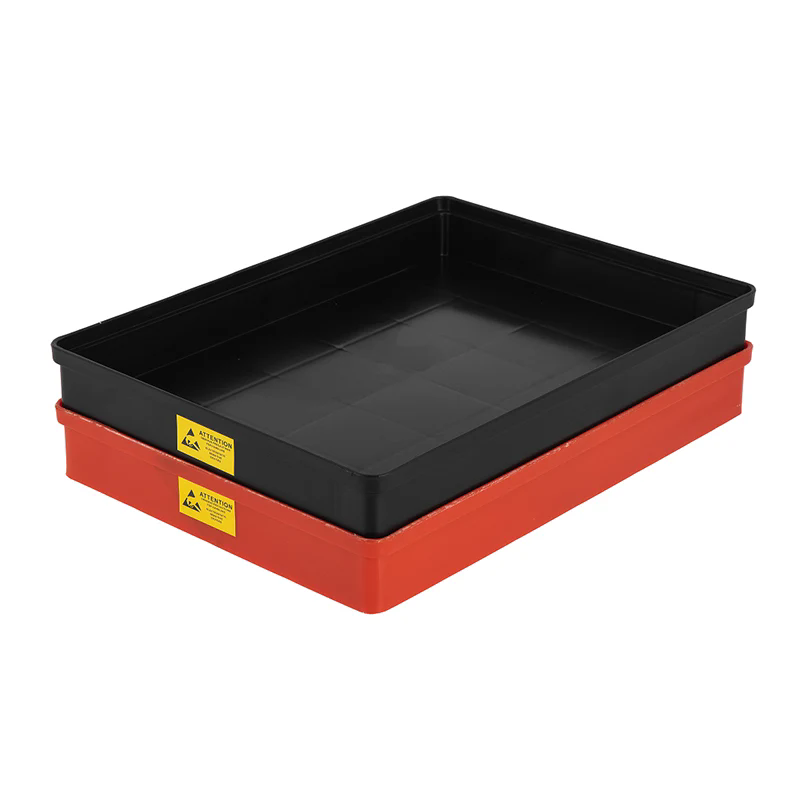

An Anti-Static Storage Tray is a container or tray made from materials with controlled electrical properties that prevent the buildup or sudden discharge of electrostatic charge. These trays are widely used in electronics, semiconductor, PCB assembly, and precision industries, serving to store, organize, transport, and protect sensitive components such as ICs, chips, sensors, and other electronic parts.

Core Features and Typical Parameters

Below is a simplified table summarizing typical parameters and design features of a high-quality Anti-Static Storage Tray:

These parameters are the foundation upon which performance, safety, and compatibility are balanced. The central theme of this article is that selecting or designing trays with the right balance of electrical, mechanical, and usability features makes a real difference in protecting your high-value electronic inventory and production workflow.

Center Focus of This Article

This article will take you through key questions: What distinguishes various anti-static trays, Why they are indispensable in modern electronics workflows, and How to choose, implement, and future-proof them. By the end, some FAQs will be addressed, and a subtle introduction to Xinlida’s solution will be included, with a “contact us” prompt for further engagement.

Why Are Anti-Static Storage Trays Essential?

Why Must One Control Static in Electronics Handling?

Electrostatic discharge (ESD) can damage microelectronic devices even at very low energy levels. As component feature sizes shrink, susceptibility to static-induced damage rises. Key reasons for choosing anti-static trays include:

• Protection of delicate electronics: Prevents latent defects or immediate failure of chips, sensors, or modules.

• Cost avoidance: Reduces scrap, rework, and yield loss.

• Regulatory compliance: Many industries (e.g. automotive, aerospace) mandate ESD-safe handling.

• Operational continuity: Helps streamline automated lines where human handling is unavoidable.

• Traceability and organization: Facilitates inventory management, labeling, and safe stacking.

Why Are Some Trays Better Than Others?

Not all anti-static trays are equal. Differences emerge in aspects such as:

• Resistivity control — too high and charges won’t bleed off; too low and there’s risk of shorted circuits.

• Mechanical strength — trays must avoid warping or bending under load.

• Dimensional precision — tight tolerances allow compatibility with robotic pick-and-place tooling.

• Cleanroom suitability — low particle shedding and low outgassing are vital in controlled environments.

• Thermal and chemical resistance — necessary when trays go through ovens, cleaning, or exposure to solvents.

• Ergonomic and modularity features — ease of handling, stacking, labeling, interchangeability with racks and carriers.

Why Is the Trend Accelerating?

• Miniaturization and higher density of components – as feature sizes shrink (e.g., 7 nm, 5 nm chips), the margin for ESD tolerance narrows.

• Industry 4.0 and automation – automated lines require trays that can be robotically manipulated with high consistency.

• Global supply chain demands – sensitive parts transit long distances; reliable protection becomes imperative.

• Sustainability and reuse – quality trays reduce waste and are reusable over many cycles, declining the need for disposable carriers.

Thus, the right anti-static tray is not just a container; it's a strategic asset in modern electronic manufacturing and logistics.

How Are Anti-Static Storage Trays Designed, Selected, and Used?

This section delves into the design principles, selection guidelines, implementation practices, and future outlook for anti-static trays.

How Are Anti-Static Trays Manufactured and Engineered?

• Material choices and formulation
  Polymers are compounded with conductive additives (carbon black, conductive fibers, etc.) under controlled processes to achieve target resistivity ranges. Additives are calibrated to avoid excessive conductivity and HV breakdown.

• Injection molding and precision tooling
  Fine tolerances are required, particularly for cavity depth, wall straightness, and interlocking geometry.

• Surface treatment and coating
  Sometimes, anti-static coatings or surface treatments are applied to enhance charge dissipation without degrading finish.

• Quality control and measurement
  Surface and volume resistivity must be measured batch-wise. Mechanical tolerances, warpage, and dimensional stability are validated.

• Traceability and marking
  Trays may be laser-etched or molded with serial codes, barcodes, or QR codes to support inventory tracking.

How to Select the Appropriate Tray for Specific Applications?

To choose the correct anti-static tray, consider the following steps:

1. Identify component geometry and size
   Match tray cavity size, depth, spacing to the parts — oversized cavities can lead to motion and damage, undersized ones can stress parts.

2. Define the required electrical properties
   Choose trays in a resistivity range suited to your environment — typically 10⁴–10⁹ ohms/sq for many use cases.

3. Assess mechanical loading and stacking
   Calculate expected tray loads and choose wall thickness, ribbing, and stacking interlocks accordingly.

4. Check compatibility with process environments
   If trays must go through reflow, cleaning, or harsh conditions, verify thermal and chemical stability.

5. Ensure ergonomic and flow compatibility
   Pick designs that fit your racks, workstations, conveyors, and automation systems.

6. Evaluate long-term reliability
   Ask about cycle life, aging characteristics, and guarantee of resistivity over time.

How Should Anti-Static Trays Be Used Day to Day?

• Grounding and bonding
  Always ground trays through conductive paths (e.g., conductive rails or wrist straps).

• Proper stacking and handling
  Stack only up to design limits. Use interlocks to prevent slippage and damage.

• Cleaning and maintenance
  Use ESD-safe cleaners and lint-free wipes. Avoid harsh solvents that degrade polymer or additive systems.

• Inspections and resistivity checks
  Regularly test surface resistivity to ensure continued ESD performance.

• Labeling and traceability
  Use standard labeling systems to track tray history, part contents, and process flow.

• Lifecycle management and replacement
  When surface resistivity drifts out of spec or mechanical deformation occurs, retire the tray and replace it.

How Will Anti-Static Storage Trays Evolve in the Future?

• Smart trays
  Trays integrated with RFID, sensors (temperature, humidity), or embedded electronics for condition monitoring.

• Advanced materials
  Novel polymer composites or graphene-based additives to achieve better balance of conductivity, rigidity, and cleanroom compatibility.

• Modular and configurable designs
  Trays that can reconfigure cavity layouts or link modules as production needs change.

• Sustainability-focused materials
  Recyclable or biodegradable ESD-safe polymers to reduce environmental impact.

• Enhanced integration with automated systems
  Optimized geometry and features tailored for robotic handling, vision systems, and AGV compatibility.

These evolutions reflect the drive toward more intelligent, flexible, and sustainable ESD-safe storage solutions.

Common Questions & Final Thoughts

FAQs (Frequently Asked Questions)

Q1: What is the difference between “anti-static,” “static dissipative,” and “conductive” trays?
A1: “Anti-static” is often used loosely. Conductive trays have very low resistivity (e.g. <10⁵ Ω/sq) and allow faster charge flow, risking short circuits if too conductive. Static dissipative trays fall in a moderate resistivity range (10⁵–10⁹ Ω/sq), which balances safe charge dissipation without sudden discharge. A proper tray should be in the dissipative range to neutralize charges slowly and predictably.

Q2: How often should surface resistivity be tested for anti-static trays in daily operations?
A2: It depends on usage intensity, but a good guideline is weekly in high-volume production, or monthly in lower-volume settings. If trays are reused, exposed to harsh environments, or show signs of wear, more frequent checks might be needed. Maintain records of resistivity over time to detect aging trends.

High-quality Anti-Static Storage Trays are more than passive holders — they are critical assets in a modern electronics workflow, ensuring protection, traceability, and reliability under increasingly challenging conditions. When choosing or designing such trays, attention to material formulation, electrical performance, mechanical design, and long-term stability is essential. For forward-looking factories, trends such as smart integration, sustainable materials, and adaptive architectures will shape next-generation tray solutions.

Xinlida offers a comprehensive line of Anti-Static Storage Trays engineered with strict resistivity control, durable mechanical structure, and modular designs suited to automated systems. Whether customization or standard models are needed, Xinlida can tailor the solution. For inquiries about specifications, samples, or integration, contact us and our experts will respond promptly to support your ESD-safe storage needs.
